| Место происхождения: | Шанхай, Китай |
| Фирменное наименование: | SHQN |
| Сертификация: | ISO 9001 |
| Номер модели: | Ссылка на рисунок 1502; подтвердить производителя соединения и чертеж печати |
| Количество мин заказа: | 500 шт. |
|---|---|
| Цена: | EXW USD$0.1/pc-$2/pc |
| Упаковывая детали: | полиэтиленовые пакеты+картон |
| Время доставки: | 7-15 дней |
| Условия оплаты: | L/C, T/T, Western Union, Western Union, Банковский перевод |
| Поставка способности: | 50000 штук в неделю |
| Материал: | марки NBR, HNBR или FKM; Конструкция из ПТФЭ указывается отдельно | Размер: | Номинальные диаметры 1, 1,5, 2, 3 и 4 дюйма; проверьте размеры уплотнительного кармана |
|---|---|---|---|
| Цвет: | черный, красный, фиолетовый, белый и т. д. | Твердость: | Эталонный диапазон резины по Шору А 80-85; согласовать оценку и цель |
| Тип: | резина, резина с латунным кольцом, резина с кольцом из нержавеющей стали | Температура: | Подтвердите выбранную марку материала для рабочей среды и температуры. |
| минимальный заказ: | 500 шт. | Срок поставки: | 7-15 дней |
| Образцы: | Доступный | Особенность: | Удержание и герметизация кромки зависят от профиля, соединения и посадки соединения. |
| Использование: | для Hammer Union | Приложение: | Нефтяные месторождения, нефтегазовая промышленность |
| certification: | ISO 9001 quality management system | ||
| Выделить: | 80-85 на берегу NBR резиновый молоток профсоюз печать,Печать союза молотков HNBR для нефтяного месторождения,Печать союза нефтяников с гарантией |
||

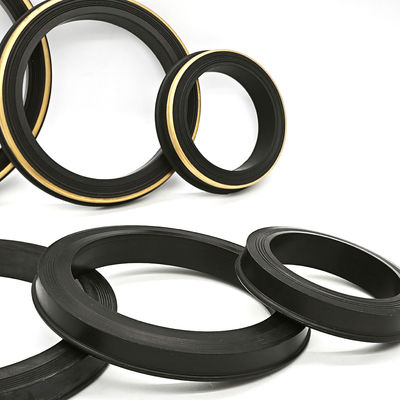

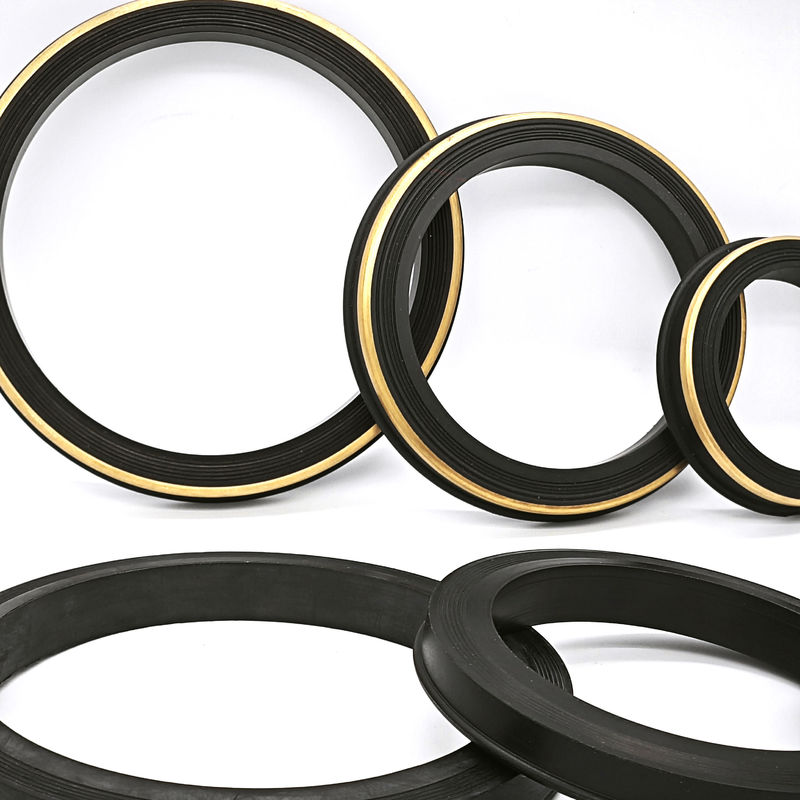

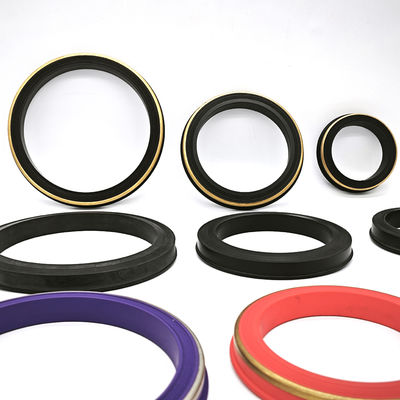

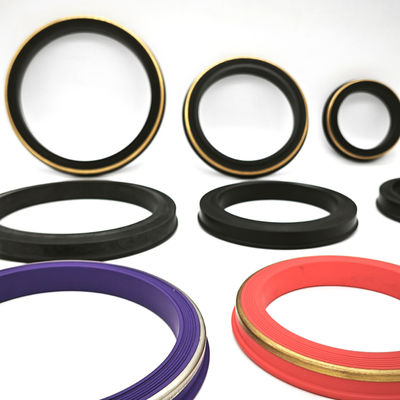

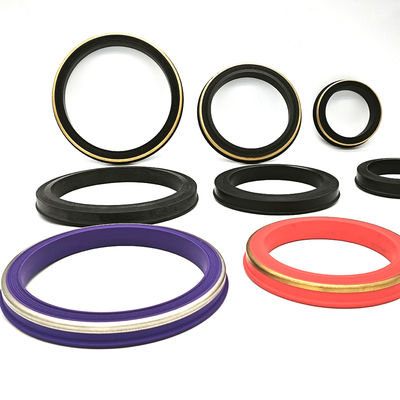

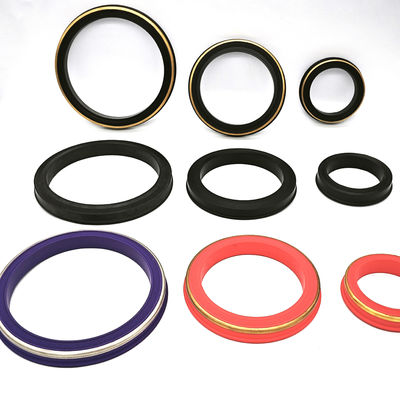

Replacement Hammer Union Seals: Figure 602, 1002 and 1502 Fitment References
Product introduction
Hammer union lip seals fit the designated seal pocket in pipe or hose union connections. The union hardware locates and compresses the seal when assembled to the equipment procedure. A retaining lip helps retain the seal in its pocket during handling; confirm the lip profile and seating dimensions against the mating union.
Shanghai Qinuo supplies replacement hammer union seals with catalogue references from 1 to 4 inches for Figures 602, 1002 and 1502. Select the exact Figure, size and manufacturer seal profile for each order line. NBR, HNBR and FKM are alternative rubber compound options; PTFE designs require separate specifications. Review the actual fluid, additives, cleaning media and temperatures with the selected grade. Sour service cannot be established from the polymer name alone.
![]()
![]()
![]()
A nominal pipe size does not define the seal dimensions, and the same nominal size does not make different Figures interchangeable. Send the union marking and seal-pocket drawing with the quotation request. Identify the rubber-only or brass/stainless backup arrangement and whether the backup is separate or bonded.
| Order line | Reference to provide |
|---|---|
| Fitment | Union manufacturer, Figure, nominal size and drawing revision |
| Dimensions | Seal profile, inside/outside diameters, height and tolerances |
| Rubber specification | Compound grade and target Shore A hardness; catalogue reference 80-85 Shore A |
| Operating duty | Fluid composition, temperatures and complete union pressure requirements |
The seal alone does not establish a working-pressure rating. Keep each Figure, size and compound separately labelled for maintenance stores, and follow the union manufacturer’s inspection and assembly procedure. Color is not proof of material compatibility.
About package and shipping
![]()
![]()
![]()
![]()
![]()
![]()
Company and factory
Shanghai Qinuo Industry Co., Ltd supplies replacement oilfield seals under Royal Way and SHQN. Hammer union seal enquiries can be discussed from the exact union reference and seal drawing.
Qinuo provides rubber, plastic and machined-part enquiries for industrial applications. For hammer union seals, agree the profile dimensions, compound grade and inspection requirements.
Confirm tooling, order quantity, production availability and dispatch with the quotation. Keep each union Figure, nominal size and compound reference separately identified in the package.
We operate an ISO 9001 quality management system. Agree drawing revision and material and dimensional inspection requirements with the order. Include the approved seal drawing revision, compound grade, target hardness and tolerance, finished dimensions and service-specific qualification requirements.
![]()
![]()
![]()
![]()
![]()
![]()
