Custom Swab Cup Enquiries: Cup Profile and Metal Insert Specification
Royal Way supplies custom rubber swab cup enquiries for equipment-defined oilfield swabbing. Specify the cup profile and metal insert arrangement from the approved drawing. Select the compound for the actual fluid and temperatures. The cup is not a pressure-control device and has no independent 10,000 psi working-pressure rating.
The existing catalogue introduces TA, V and MV profiles and nominal tubing references including 2 3/8, 2 7/8, 3 1/2 and 4 1/2 inches. These designs use different support arrangements. A metal bushing and internal reinforcement are separate features; confirm which the ordered drawing requires rather than applying both to every cup.
For a custom size, provide the cup outside diameter, height, core bore, insert material and tolerance requirements. A new approved sample can support the enquiry, but a worn cup should not define production dimensions alone. Agree compound, tooling and inspection criteria with the order.
Custom Swab Cup Drawings: Distinguish Bushing from Internal Reinforcement
Show the metal insert in the drawing section, including its material, bore, axial position and attachment arrangement. A steel or aluminium bushing locates the cup on the tool; other internal reinforcement must be specified by the selected profile. Do not add an unspecified reinforcement based on the general product title.
Provide tubing inside diameter, cup OD, height and mandrel dimensions together with fluid, temperature and load conditions. The retained catalogue table covers standard reference rows; a custom size needs its own approved drawing and inspection tolerances.
| Original nominal tubing reference (inch) |
Core and Description |
Catalogue cup OD (inch) |
Catalogue cup ID (inch) |
| 2-3/8" (2") |
Aluminum Core Swab Cup |
1.992" |
1.120" |
| 2-3/8" (2") |
Steel Core Swab Cup |
1.992" |
1.120" |
| 2-7/8" (2-1/2") |
Aluminum Core Swab Cup |
2.431" |
1.370" |
| 2-7/8" (2-1/2") |
Steel Core Swab Cup |
2.431" |
1.370" |
| 3-1/2" (3") |
Aluminum Core Swab Cup |
2.985" |
1.370" |
| 3-1/2" (3") |
Steel Core Swab Cup |
2.985" |
1.370" |
Replacement cup enquiries can be discussed from the required profile and approved drawing. Specify the nitrile or other compound grade and actual fluid exposure. Profile references do not imply original-brand manufacture or universal compatibility.

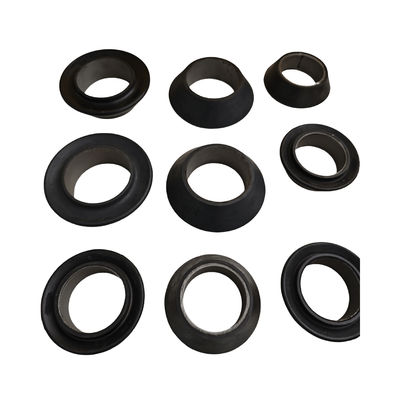

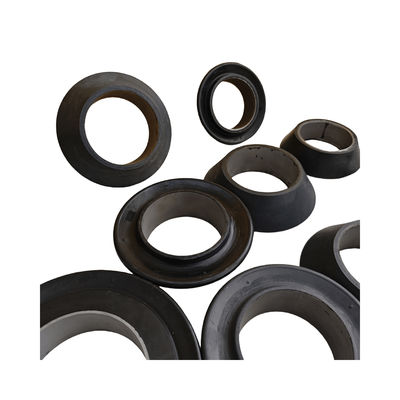

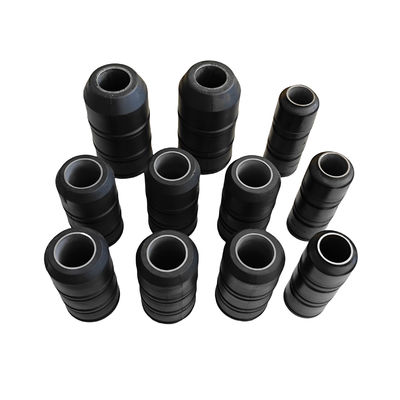

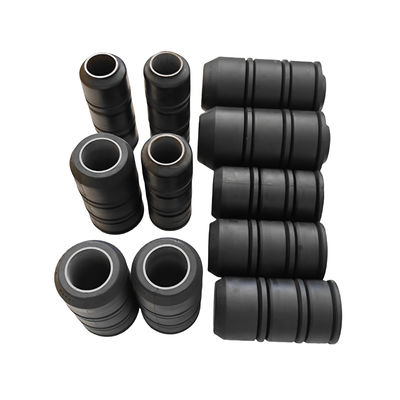

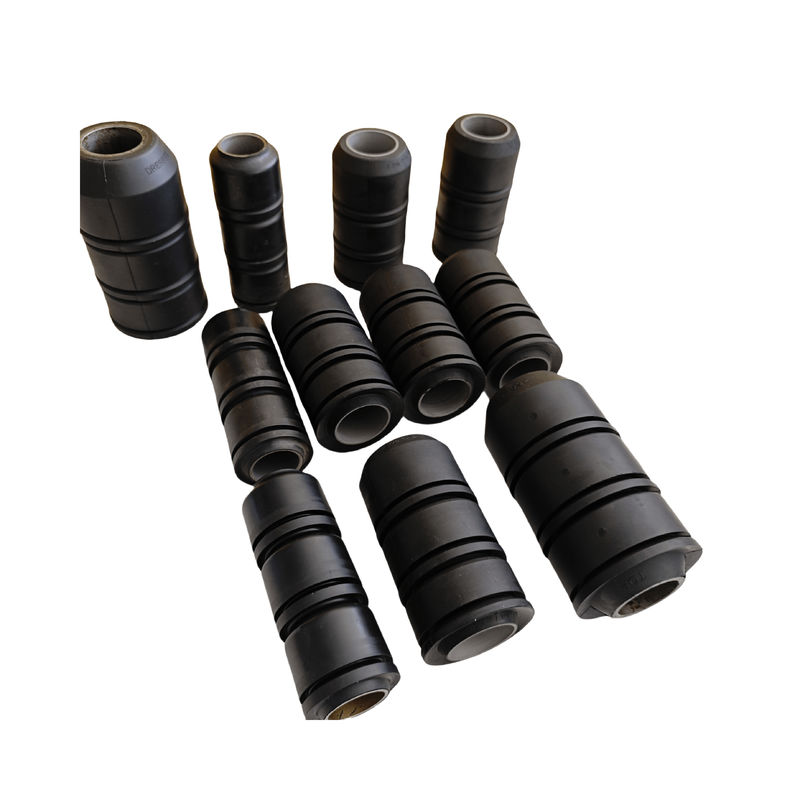

Available types of Swab cups:
TA style
TA is described in the existing range as a medium-load cup around a steel or aluminum bushing. Confirm the particular core material, cup profile and mandrel bore for the selected size. Load suitability and compound performance depend on the approved tool configuration and operating conditions.
V style:
The existing V-series description covers all-rubber lip profiles for sand-bearing fluid enquiries. Cup count, lip behaviour and load limits must follow the tool maker’s instructions. Review the selected compound for fluid, temperature and wear conditions rather than assigning universal chemical resistance.
TUF style:
The TUF-style description refers to an internally reinforced cup profile. Confirm the reinforcement, dimensions and load requirements against the tool drawing. Hot-well or rough-tubing suitability requires review of the actual compound and tubing condition.
NUF style:
The NUF-style description refers to a heavy-load rubber cup with a steel or aluminum bushing arrangement. Specify the exact profile, core material, dimensions and approved tool duty. A heavy-load description does not establish a pressure or lifting-capacity rating.
| Part Name |
MV Style, TA style, TUF style, NUF style and V style |
|
Environment
|
oil, gas, gas condensate
|
|
Available Material
|
Compound and core construction by selected cup drawing; review fluid and temperatures
|

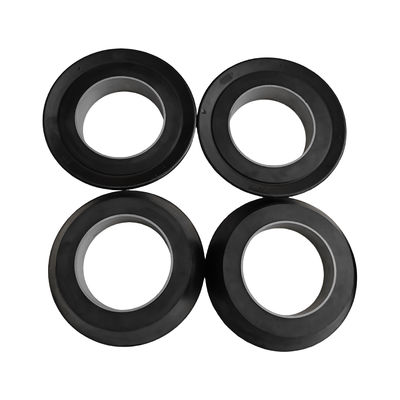

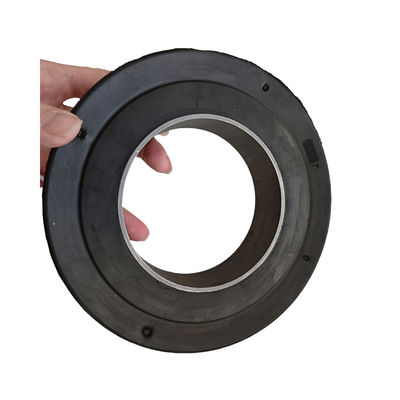

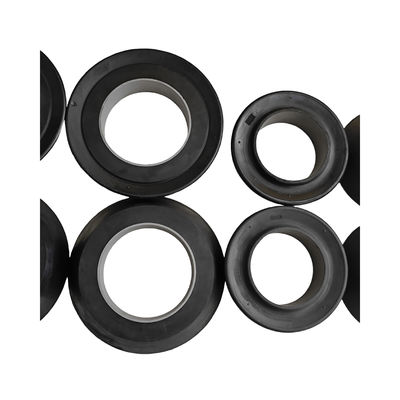

Other relative rubber products:
Packing and shipment:
- Express: S.F. ,DHL,UPS, TNT, FedEx ect, for urgent and small order.
- Air shipment: air port to air port or air port to door.
- Sea shipment: suitable for bulk goods. it will takes more longer time than air shipment.
Quality management and inspection documents:
Shanghai Qinuo supplies oilfield rubber-part enquiries under Royal Way and SHQN. We operate an ISO 9001 quality management system. For swab cups, agree the drawing revision, compound, core material and dimensional inspection requirements. Confirm tooling, production availability and delivery with the quotation.
Mould corner view for the rubber parts:
FAQ:
Q.Why Choose Qinuo industry?
We provide them with one-stop service from R & D to production to satisfy their customization needs.
Confirm the final packing, destination and dispatch schedule with the quotation. Shipping options depend on the order size and route.
Q.What is your advantage?
- Has sound and mature supporting supply chain
- Lower mold costs
- High efficiency of development and design ability and short process time.
- Cost effective and good service attitude.
- More professional export sales staff who are all know rubber processing very well.
Q.Are you manufacture or trading company?
We are manufacture. Our factory located in Haimen District, Nantong City, Jiangsu Province.
Q.What should be checked for a custom metal-insert swab cup?
Specify whether the drawing requires a locating bushing or internal reinforcement. Identify the metal material, bore, axial position and attachment arrangement, then agree cup OD, height, compound grade, hardness tolerance and inspection criteria.
Q.Can I get some samples?
Ask about sample availability for the specified custom cup profile and metal-insert construction. Agree sample quantity, drawing revision, dimensional inspection, price and shipping arrangements with the quotation.
Q.Can you produce OEM products?
Yes, we can produce by your samples or 3D drawings. We can build the molds and fixtures.
Q.What's the term of payment?
Amount < US$5000,100% paid in advance by paypal or T/T;
Amount >= US$5000, 30% paid in advance, 70% balance before shipment by T/T
Q.Can you manage the shipment?
Sure, we can arrange different ship ways according to the goods final packing: by express, by air or by sea.
