Product Description

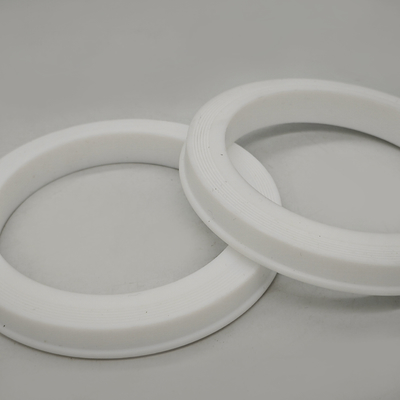

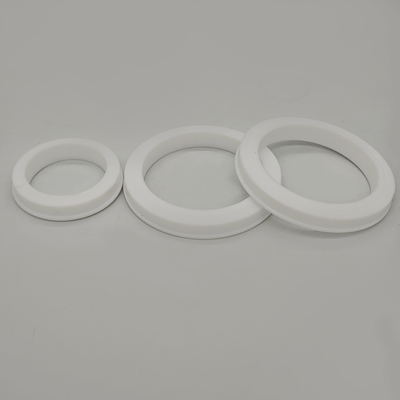

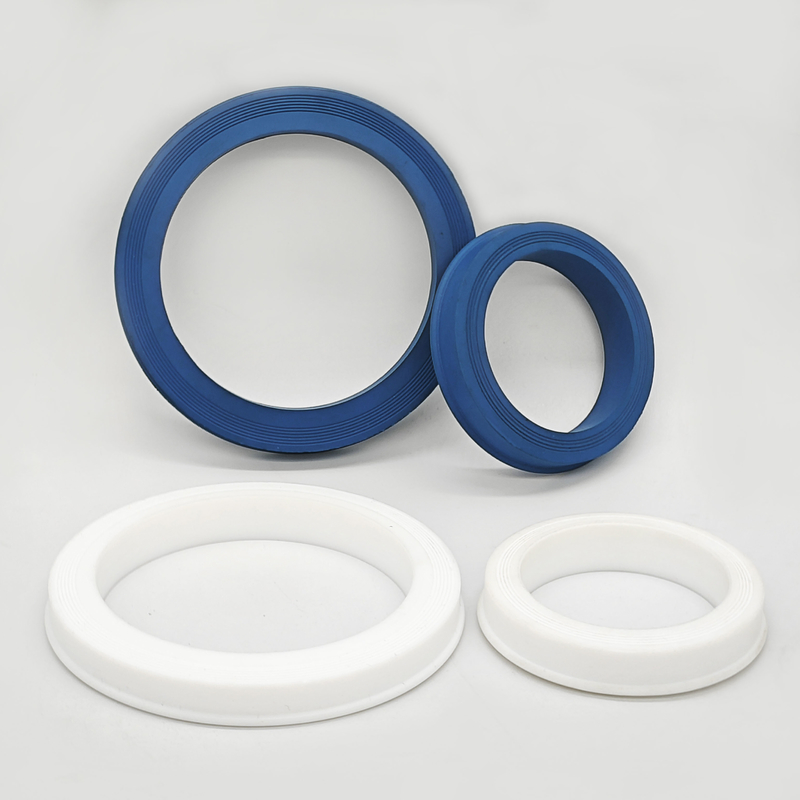

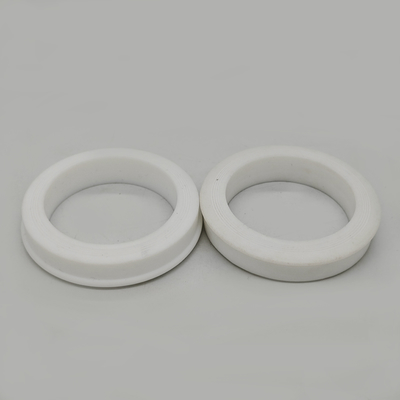

Royal Way®Hammer union seals are critical components used in high-pressure environments, particularly in the oil and gas industry. These seals are designed to provide robust and reliable sealing solutions for hammer union connections, which are commonly found in pipelines and high-pressure applications. The seals are known for their durability and ability to perform under extreme conditions, including high temperatures and pressures.
1" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
1-1/2" 1502, Buna / FKM/ HSN
3" 602/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
4" 602/1002/1502, Buna / FKM/ HSN(Brass/Stainless Anti-Ext)
2" FIG 206, Buna / FKM/ HSN
3" FIG 206, Buna / FKM/ HSN
4" FIG 206, Buna / FKM/ HSN
| Size: |
1" 1.5" 2" 3" 4" 6" 7" |
| Material: |
Buna/FKM/HNBR/PTFE |
| Types: |
rubber/ rubber+brass back-up/rubber+ss back-up |
Material Introduction
| Material name |
Temperature range |
Advantage |
Deficiency |
| NBR(Buna) |
-40ºC to 120ºC
-40ºF to 248ºF |
1.Presently the most widely used rubber in the seal industry
2.Exceptional balance of good mechanical properties, wear properties, and chemical resistance
3.Resistance to most mineral oils and greases |
don't used with gly-based brake fluids and strong acids |
| HNBR(Hydrogenated Nitrile) |
-40ºC to 160ºC
-40ºF to 320ºF |
1.Chemical resistance
2.Wider temperature range than standard nitrile
3.High strength material that resists extrusion, abrasion, and wear
4.Water and steam resistance to +149ºC(+300ºF)
5.H2S resistance up to 10%
6.Commonly used with petroleum oils and co2 |
don't use with chlorinated hydrocarbons, polar solvents, or strong acids |
| FKM(Fluorocarbon) |
-26ºC to 230ºC
-15ºF to 446ºF |
1.Excellent resistance to higher temperature, petroleum, and gasoline
2.Good chemical resistance, including to refrigerants(R12)
3.Great mechanical properties are retained over a wide temperature range
4.Commonly used with ammonia
|
Poor resistance to aromatic hydrocarbons, polar solvents, and toluene |
| PTFE(Plyetrafuoroethylene) |
-268ºC to 250ºC
-450ºF to 483ºF |
Vitually universal chemical resistance |
Generally more expensive than other plastics or elastomers, which can be a limitation for cost-sensitive applications. |
PU (Polyurethane)
|
-54°C to 105°C
-65°F to 220°F |
1.Thermoplastic elastomer with higher tensile strength, toughness, and wear resistance
2.Great combination of hardness and elasticity
3.Excellent low temperature flexibility
4.Commonly used in high pesure hydraulic systems where parts are subject to wear
|
Can degrade when exposed to UV light over prolonged periods unless specifically formulated with additives for protection. |
Best Selling
Rubber O rings
- Rubber O rings -As568 series rubber o rings/JB standard rubber o rings.
- Encapsulated rubber o rings- silicone/ FKM rubber o rings
- PTFE coating rubber o rings-kinds of color rubber o rings
Swab cups
- V types 4" 5.5" ect.
- TA type
- MV type
- NUF type
- TUF type
Rubber seal kits- custom packing or lable is available
- #10 setting tool - With burst disk
- #20 setting tool - With burst disk
- AP Compact Setting Tool Kit
- Grease Tubes Seal Kit
- 3 1/2” Shorty Kits
- 3 - 1/8" Weight Bar Kit
- #10 Baker Firing Head Kit
- #20 Firing Head Kit
- #20 BP3.SEC kits
- #10 BP3.SEC kits
- T-BRT redress kit
- T-1 Set
- GC Stripper Head Redress Kits
Wireline Component Parts:
1) Pressure Relief Disc, ZD Plated (application:rupture(bleeder) Disc)
2) Rubber Push Pin -black
3) Nylon Push Pin -natural
4) Retainer Nut, Steel, ZD Plated (Flat, beveled also available) (application: retainer nut)
5) Threaded Steel Plug, w/ Lathe Cut (application:5" port plug)
6) Threaded Brass Plug (application: setting tool plug )
Company Profile
Shanghai Qinuo Industry Co., Ltd, established in 2013 within the Shanghai Free Trade Zone, is a pioneering high-tech enterprise specializing in the integration of research and development, production, and sales. Embracing the ethos of "Quality for Survival, Innovation for Development," we have garnered a stellar reputation domestically and internationally under the esteemed brand names of "Royal Way®" and "SHQN®".
Our company provides OEM/ODM services. Currently, we have multiple 150T/200T/300T vacuum vulcanizing machines, which can meet the production requirements of various products.
The workshop has introduced the most advanced vacuum vulcanizing machine on the current market, which can produce 2500 molds per day to meet customer orders. The vulcanizing machine uses vacuum pressurization to reduce product defects and is safe to use!
